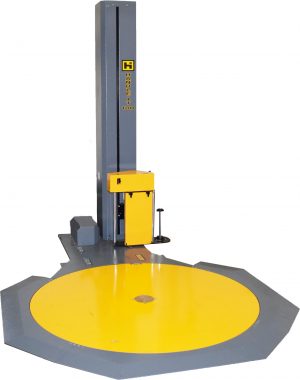

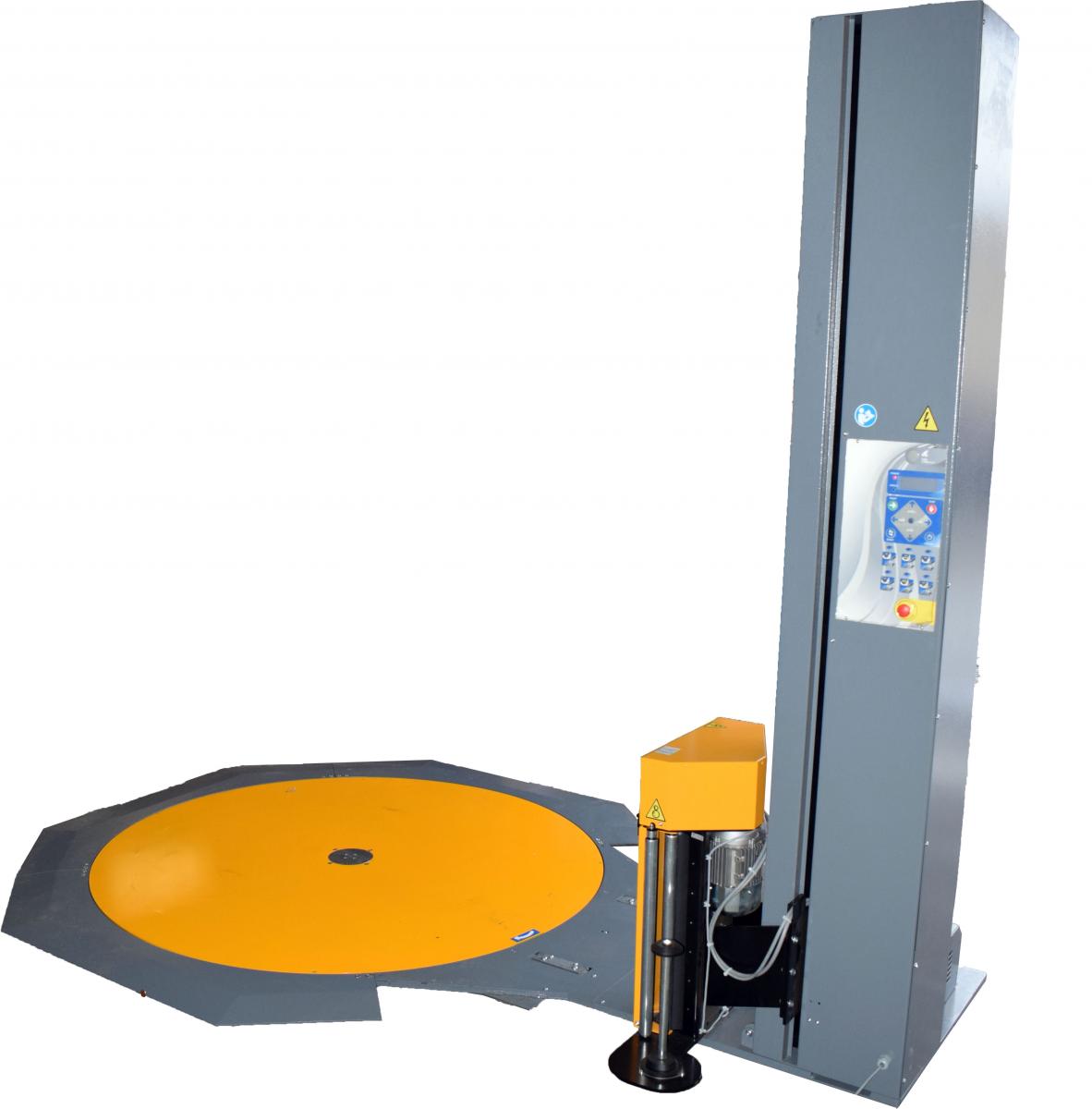

1200UL Ultra Low Profile Stretch Wrap Machine

The 1200UL has a patented ultra-low frame (.75") allowing you to load and unload without a long ramp. It comes standard with a power pre-stretch carriage and PLC controls. The frame makes loading safer and faster. You also save floor space and money without the need for standard 5' or 7' long ramps.

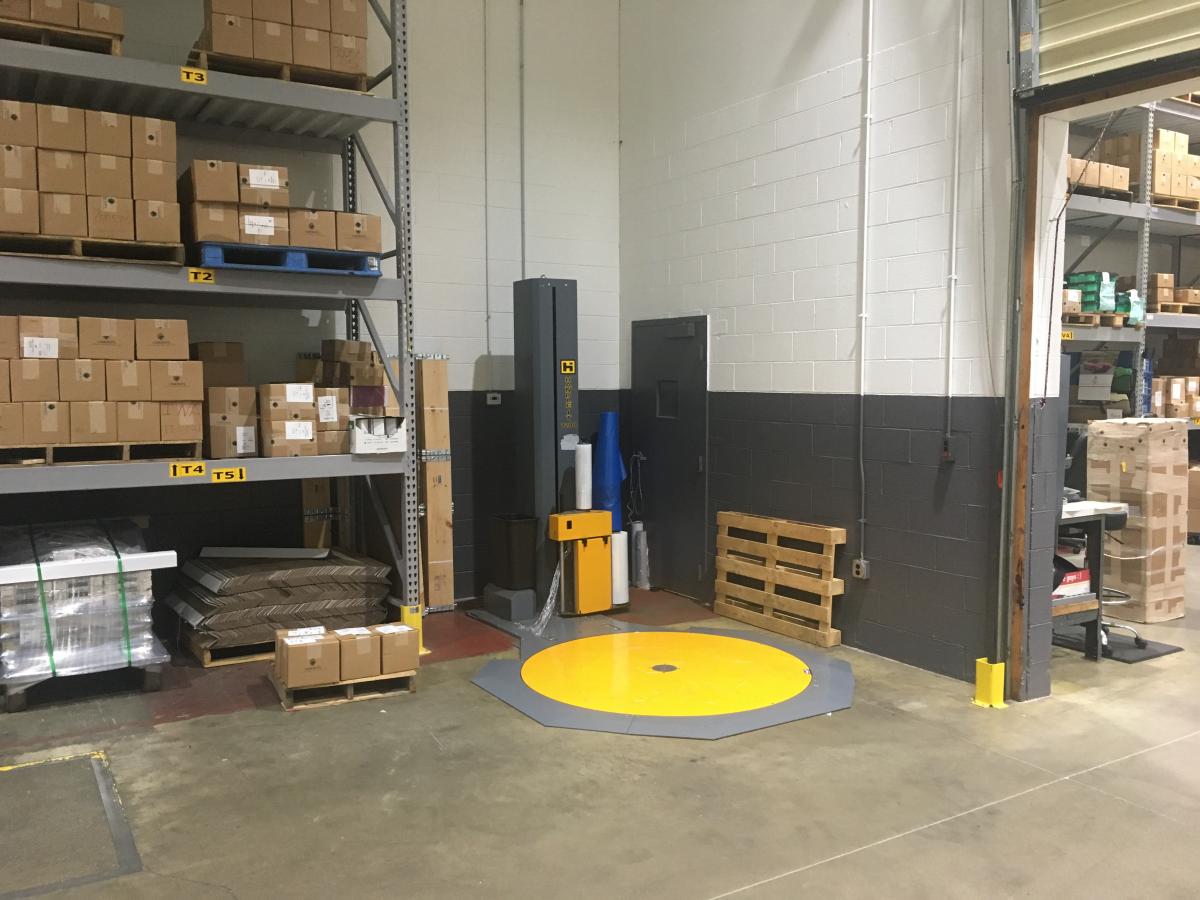

3 sided 8'' skirt ramp included

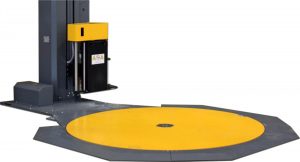

Patented Ultra Low Frame doesn't require long space eating ramps or expensive pit mounting

Max average loads wrapped per day 200 cycles.

MSRP $12,500

Request a QuoteDealer Locator



It's the easiest machine to load and unload in the market!

No pit mounting required!

Performance

  • 200 maximum average loads per day
  • 93" maximum load size diagonal
  • 86" maximum load wrap height -118" extended height available.
  • 3300lb maximum load weight capacity

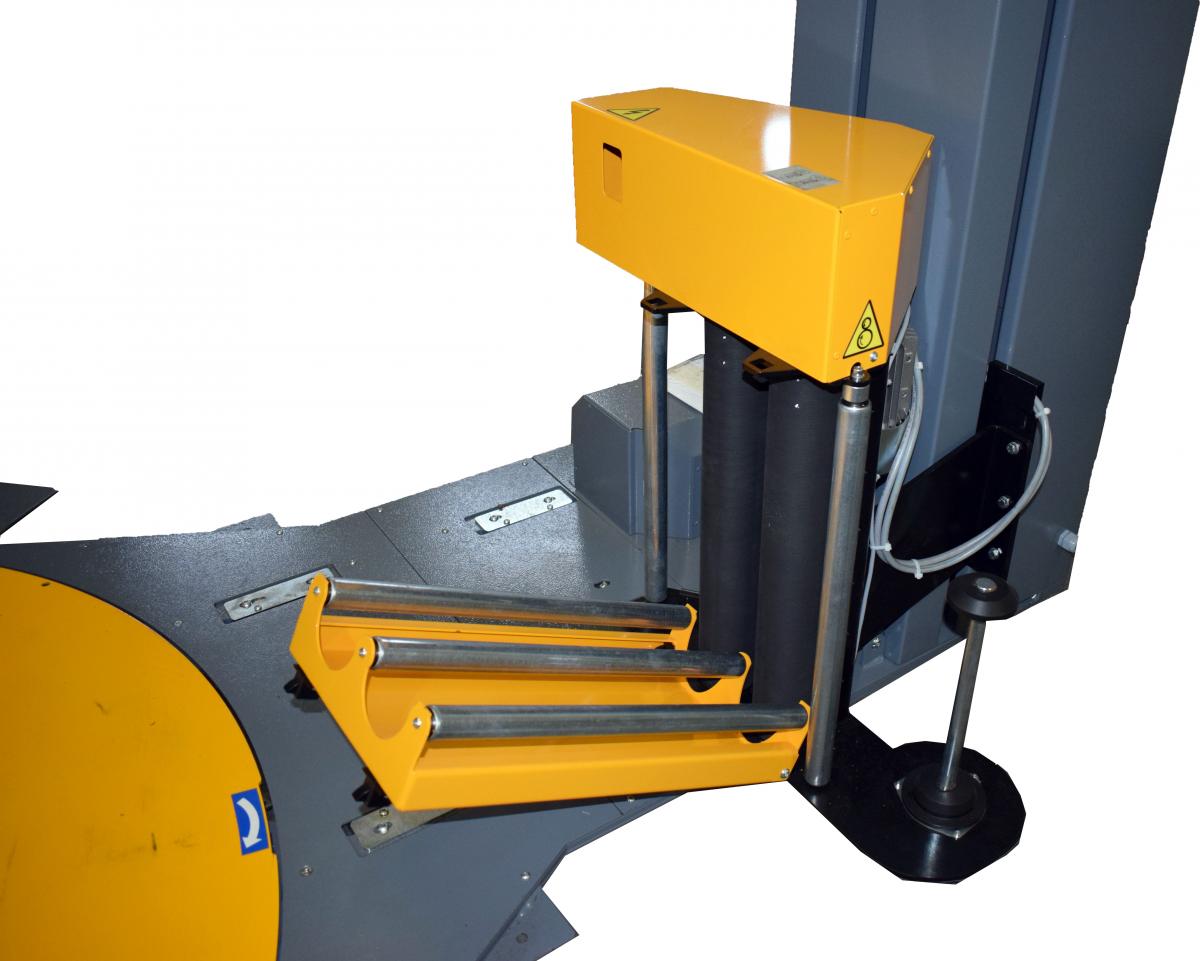

  • 250% power pre-stretch film carriage for improved efficiency

Specifications

  • Turntable speed 3-12 RPM
  • 59" Turntable size
  • 3/4 HP TEFC Turntable Drive Motor
  • 1/2 HP TEFC Pre-Stretch Motor
  • 110v standard plug
  • Machine size 104"L x 59" W x 97" H

Features

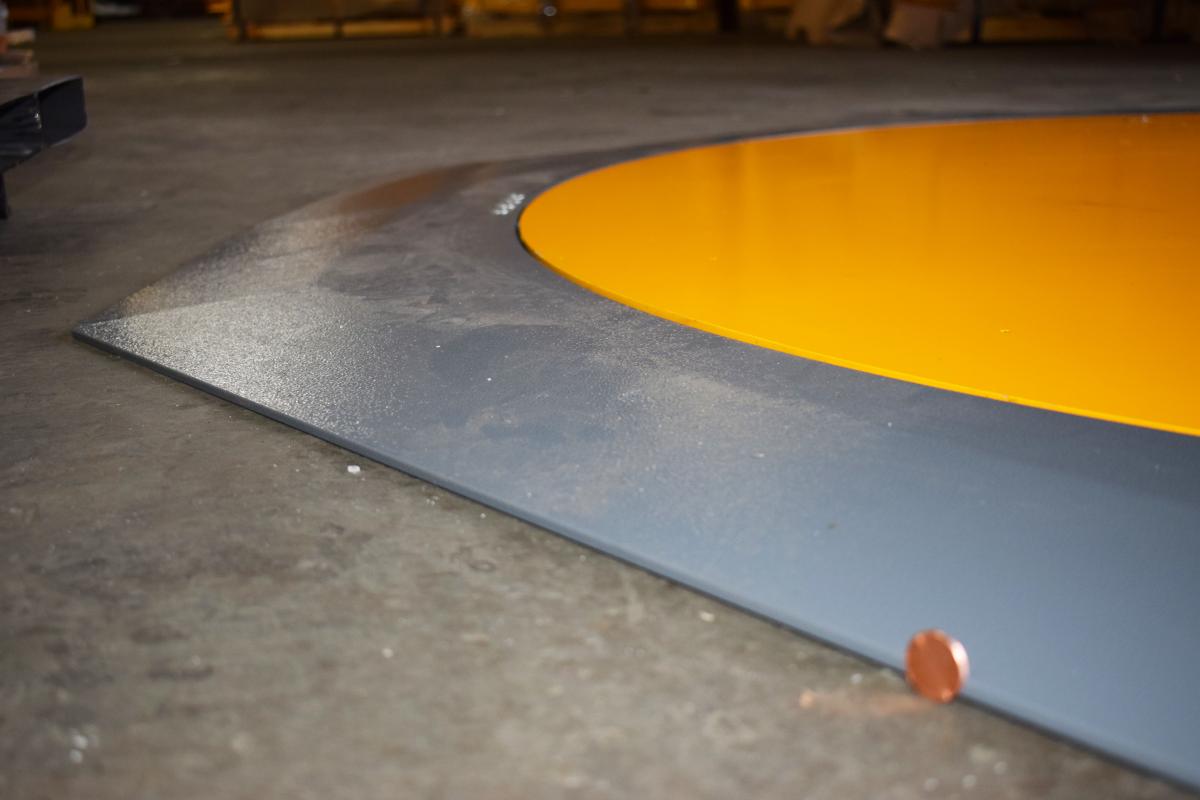

  • Patented Ultra low profile frame, less than 3/4'' with an 8'' skirt ramp so pallet jack loading is a breeze!

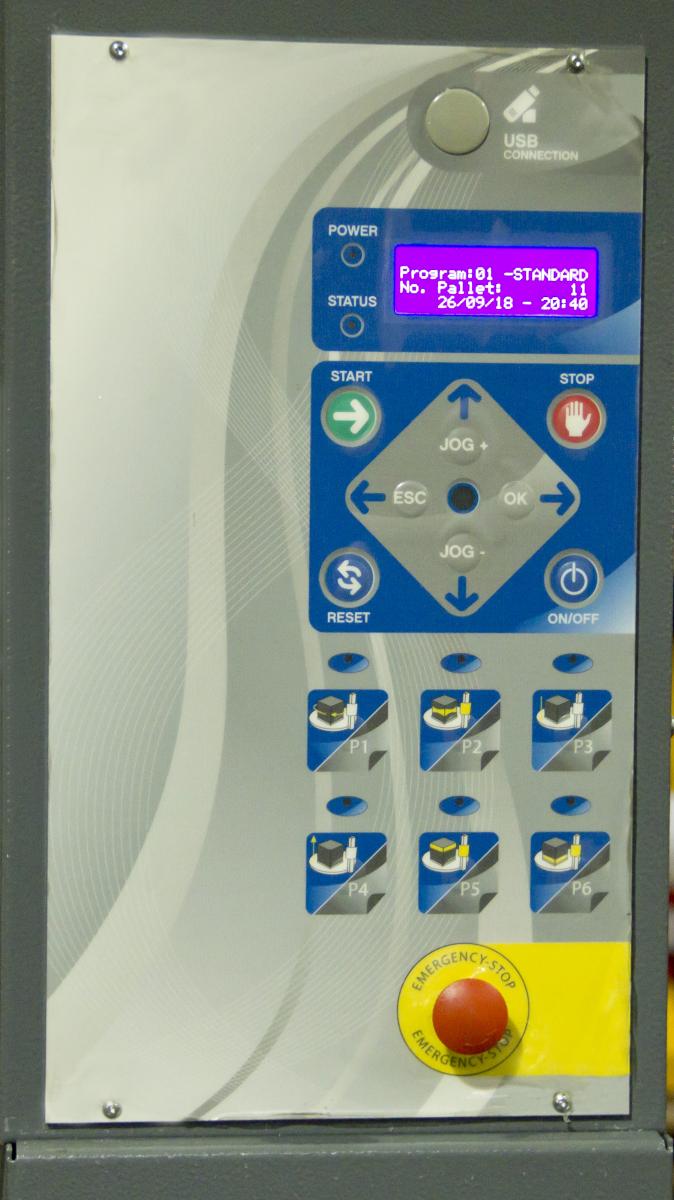

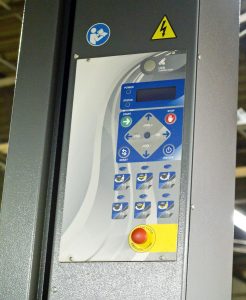

  • User-friendly PLC control board
  • Frequency controller for carriage and/or turntable speed adjustment
  • Photocell for pallet height detection
  • Safety stop at the base of the carriage
  • Stop at home position
  • Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
  • Quick selection of 6 main parameters or saved programs
  • USB port to upload software and download settings, reports, and statistics
  • 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack
  • 3 working modes: semimanual, semiautomatic, or fixed height
  • Storage of 32 end user programs
  • Acoustic warning a the cycle start and stop
  • On-board diagnostics
  • Wrapped pallet counter
  • Braked turntable at end of cycle
  • 59” diameter turntable loading surface
  • Up to 12 RPM turntable speed
  • 3,300 lb maximum load weight
  • 48” x 80” (93” diagonal) maximum pallet size *ensure area is clear for over-swing*
  • Up to 250% film pre-stretch with electronic power pre-stretch motor
  • 3 year warranty

Benefits

  • Rack and pinion carriage drive system increases reliability and decreases down time.
  • Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime
  • Belt driven power pre-stretch carriage for added reliability
  • Bonfiglioli AC motors
  • Password protection and one of the widest array of wrap cycle parameters available.
  • Adjustable Power Pre-Stretch up to 400%
  • Roping System
  • 118” Max Wrap Height
  • Remote Control
  • Top Press
  • Photocell for Dark Loads
  • Auto Film Cut
  • Cold Environment Kit
Model Number SWM-SA-1200UL
 Wrap Height  86"
Turntable Diameter 59"
Max Pallet Size 48'' x 80'' (93" Diagonal)
Turntable Height .75''
Load Capacity  3300 lbs
Powered Pre-Stretch 250%
Power Supply  110v , 10 amp
Total Machine Footprint  105" long x 60" wide
 Machine Weight 900 lbs
Turntable speed 3-12rpm
8" Skirt Ramp for pallet jacks Standard
Film Type 20" machine film with 3'' core, 100+ gauge
  • What is the major benefit of the ultra low-profile frame? The ultra low frame with the 8'' skirt ramp allows you to easily load with pallet jacks and not take up valuable floor space with a long 5' ramp. It also protects against continuous impact with the forklift bumping the frame when loading/unloading pallets.
  • How many loads per day can this model wrap?  This model is rated to wrap up to a max average of 200 loads per day.
  • What is the max weight and size pallet that it can wrap? You can wrap pallets up to 4400lbs and that have a max diagonal of 93"
  • What type of film should we use for this machine? The machine uses 20" machine film and with 250% pre-stretch we suggest 90 gauge film or thicker.
  • What power requirements are needed? All of our machines plug into standard 110v outlets.
  • Is there any setup or installation when I receive the machine? Our machines ship fully assembled, tested, and ready to use with common wrap cycles preloaded.
  • What type of support do you offer? We carry parts in stock for quick shipment and we have full time tech support.

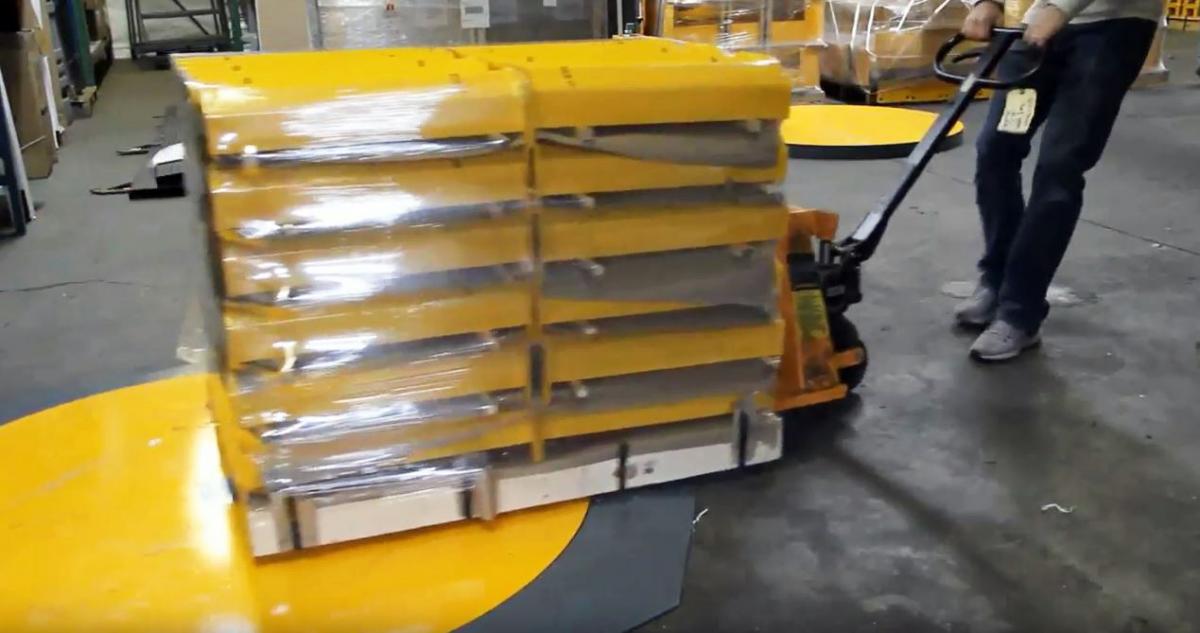

Ultra Low profile stretch wrap machine loading and unloading with a pallet jack
Handle It stretch wrap machine 1200ul ultra low profile

The 1200 series has a 3 year warranty, for any service related questions give us a call and our techs will be happy to help.
