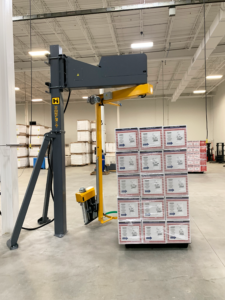

A Model RA 2300 semi-automatic rotary arm pallet wrapper.A Model RA 2300 semi-automatic rotary arm pallet wrapper.A Model RA 2300 semi-automatic rotary arm pallet wrapper.

RA 2300 Semi-Automatic Rotary Arm Pallet Wrapper

The Handle It® Model 2300 is a semi-automatic stretch wrap machine designed to function at an automatic production rate. The solid, well-built frame was created with quick and easy installation in mind without sacrificing the durability of a machine used for high volumes of pallet wrapping.

32 end user program storage

Quickly wrap extra heavy or unsteady pallet loads

9 adjustable parameters

250% film pre-stretch carriage and adjustable power pre-stretch carriage (600%)

Request a Quote

Categories: ,

Overview

Performance & Specifications

  • Max load size: 82” diagonal x 94”H
  • Fixed pedestal mount
  • 110V plug-in
  • Photo eye auto pallet height sensor
  • Power pre-stretch carriage (up to 250%)
  • Safety stop loop at base
  • Stop at 0 position
  • 9 adjustable parameters
  • 6 working cycles
  • 32 end user program storage
  • Wrapped pallet counter
  • Rack & pinion carriage drive track

Main Options

  • Adjustable power pre-stretch carriage (600%)
  • Automatic feature – Auto-attach system
  • Automatic feature – Auto-cutoff system
  • Automatic feature – Remote control
  • Roping system
  • 118” max wrap height
  • Photo cell for dark or re ective loads

Literature

SWM-RA-2300 Product Information Sheet

Accessories

  • Adjustable power prestretch carriage (600%)
  • Auto-cutoff system
  • Roping system
  • 118” max wrap height
  • Remote control
  • Photo cell for dark or reflective loads
  • Extended arm for 114″ load diagonal
  • Light curtain
  • Safety fencing

Specifications

  • Max Average Loads Per Day: 300
  • Loads Per Hour: 30-35
  • Load Capacity: Unlimited
  • Machine Dimensions (L x W x H): 125” L x 113” W x 140” H
  • Photo Eye
  • Electronic Film Tension Control
  • Power Pre-Stretch 250%
  • Variable Power Pre-Stretch (600%): Yes
  • Auto Film Cut: Optional
  • Max Wrap Height: 94″
  • Extended Mast Wrap Height.: 118”
  • Rack & Pinion Carriage Drive
  • Integrated Scale: Floor scale reommended
  • Playback Recordable Cycles:
  • Onboard Diagnostics
  • Total pallets wrapped counter
  • # Of User Saved Cycle Programs: 32
  • Quick Select Parameters
  • Ergonomic Film Change:
  • **Patented Ultra Low Frame No Ramp Needed, Turntable height less than 3/4” **:

Quality

  • Designed and manufactured in Europe
  • Final assembly, testing, and programming in Milwaukee, Wi
  • ISO 9000 certification
  • CE compliant
  • Utilize high quality components
  • We test and pre-program every machine prior to shipment

Guarantee/Warranty

The Model RA 2300 has a 3 year warranty. For any service related questions, please call and our technicians will be happy to assist
