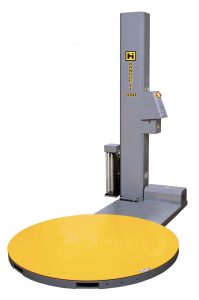

850PS Semi-Auto Stretch Wrap Machine

Handle It stretch wrapper 850PS
Handle It 850PS pallet wrapper
850 Control Board
850PS power pre-stretch carriage backview
850PS power pre-stretch carriage side view open
850PS power pre-stretch carriage

The Handle-It® Model 850PS offers top-of-the-line functions and features at a great price. It is ideal for those who are looking for an efficient machine capable of handling high volumes of pallets per day. Standard features on the 850PS include 250% powered pre-stretch, 86” max wrap height, user-friendly control panel, electronic film tension, and many other elements cleverly designed to make this unit a must-have in any facility looking to improve and streamline their packaging operations.

250% Powered Film pre-stretch carriage for improved film economy

Easy to use controls with 18 custom wrap cycles

Rack and pinion carriage drive for added reliability

MSRP: $8,200

Request a QuoteDealer Locator

Performance

  • 100 maximum average loads per day
  • 93" maximum load size diagonal
  • 86" maximum load wrap height -98" extended height available.
  • 4400lb maximum load weight capacity
  • 250% power pre-stretch film carriage for improved efficiency

Specifications

  • Turntable speed 3-13 RPM
  • 59" Turntable size
  • 3/4 HP TEFC Turntable Drive Motor
  • 110v standard plug
  • Machine size 93"L x 59" W x 88" H

Printable product information sheet

Features

  • Electronic printed circuit board for the management of the cycle
  • Frequency controller for turntable speed adjustment (from 3 to 13 RpM)
  • Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
  • Electronically controlled power pre-stretch film carriage- load sensor dynamically controls the application of film for an ultra consistant film stretch.
  • Photocell for pallet height detection
  • Safety stop at the base of the carriage
  • Stop at home position
  • Power board IP54
  • 2 access keys (including lock mode)
  • Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, film tension.
  • Many parameters available at upper password level
  • Reinforcing operation
  • 3 working cycles: ascent/descent; topsheet; only ascent
  • 9 wrap programs can be saved by the customer
  • 9 additional recordable playback cycles can be saved

Benefits

  • Rack and pinion carriage drive system adds to reliability and reduces down time.
  • Integrated control board makes repair and diagnosis easier and reduces machine down time
  • Seimens VFD for the power pre-stretch carriage
  • Heavy Duty Carriage Rollers & Self Lubricating turntable bearings
  • Electronically controlled power pre-stretch carriage greatly increases film efficiency
  • Easily moved with forklifts and plugs into standard 110v wall outlets.

Request More Information on this Product

Available Options:

  • Integrated Scale to weigh pallet loads (SWS-0850-ASM)
  • Loading Ramp for hand pallet jacks (SWM-SA-STDRMP) **add the deck extension if using electric walk behinds (SWM-EXD)
  • Extended Max Wrapping Height 98" (XHT)
  • Photocell for dark or reflective loads

Loading Ramp Shown with the deck extension if you use electric walk behind pallet jacks:

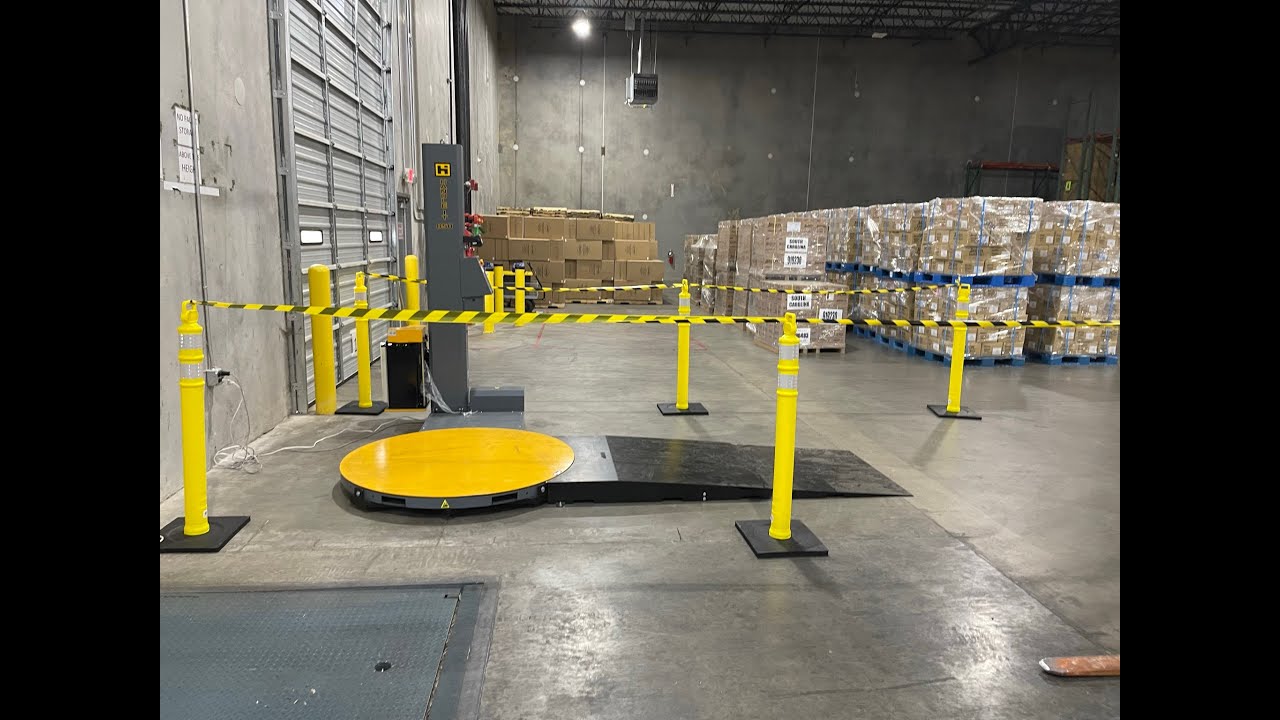

Shown with ramp and deck extension for electric walk behind pallet jacks.



Model Number SWM-SA-850PS
 Wrap Height  86"
 Turntable Diameter 59"
 Max Pallet Size 48'' x 80'' (93" Diagonal)
 Turntable Height 3''
 Load Capacity  4400 lbs
 Powered Pre-Stretch 250%
 Power Supply  110v , 10 amp
 Total Machine Footprint  93" long x 60" wide
 Machine Weight 600 lbs
 Turntable speed 3-13rpm
Programmable Modes 18
Film Type 20" machine film with 3'' core, 80 + gauge
  • How many loads per day can this model wrap?  This model is rated to wrap up to a max average of 100 loads per day.
  • What is the max weight and size pallet that it can wrap? You can wrap pallets up to 4400lbs and that have a max diagonal of 93"
  • What type of film should we use for this machine? The machine uses 20" machine film and with 250% pre-stretch we suggest 80 gauge film or thicker.
  • What power requirements are needed? All of our machines plug into standard 110v outlets.
  • Is there any setup or installation when I receive the machine? Our machines ship fully assembled, tested, and ready to use with common wrap cycles preloaded.
  • What type of support do you offer? We carry parts in stock for quick shipment and we have full time tech support.
Quick Demo of the 800/850PS model stretch wrapper
Full Demo of the 800/850PS stretch wrap machine
Playback mode demo for Handle It 800/850
  • 3 Year Parts Warranty
