Pallet Rack Upright Protector

Handle It pallet rack post protectors are designed to protect the rack uprights from being hit by forklift traffic, or pallets that are stored in the rack bays. We offer sizes to fit around any rack upright width.

Sizes to fit all rack uprights

Effective 4 anchor design

V face with high visibility yellow powder coat

Buy Online Request a Quote Dealer Locator

Overview

  • Handle It pallet rack upright protectors help prevent damage to rack uprights, shelving uprights, partitions and many other factory and warehouse structures.
  • These heavy steel protectors provide a low cost method of reducing damage to expensive equipment and protecting personnel from falling rack structures hit by moving vehicles.
  • These heavy duty 5 gauge steel protectors are easily mounted by securing to the concrete floor using four ½” diameter wedge anchors (supplied as optional purchase).
  • Handle It Post Protectors are painted in safety yellow hard glossy finish for a durable attractive appearance.
  • Standard heights Include: 12″ 18″ & 24″ tall.
  • Standard inside dimension width sizes from 4.5″-8.5″
  • Custom sizes available

Literature

SELL SHEET

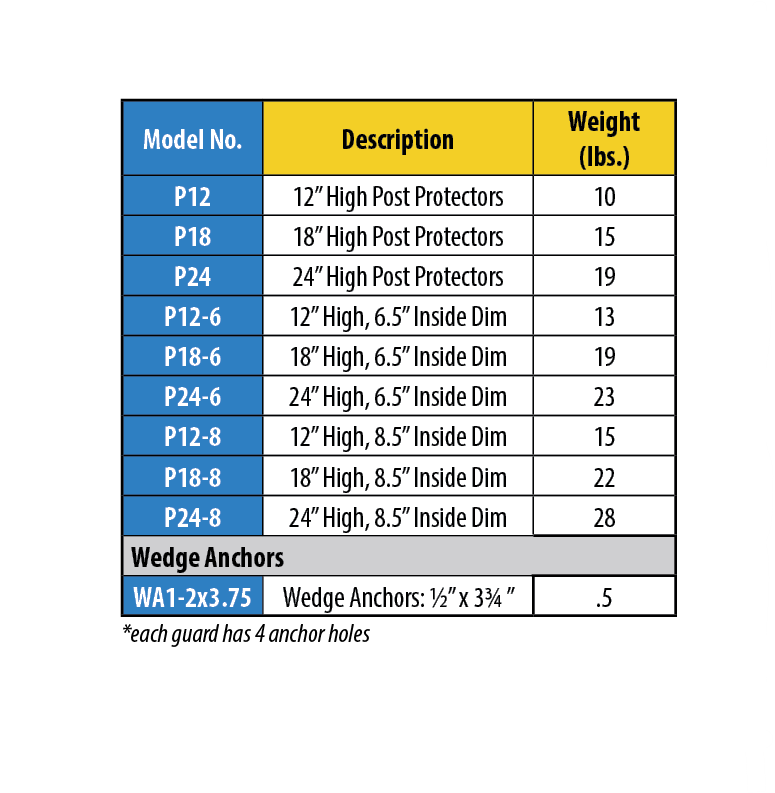

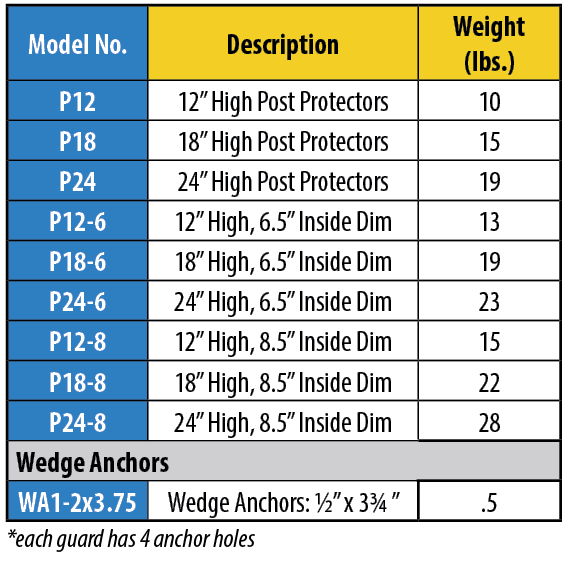

Specifications

Part NumberHeightInside Clearance Dim. Steel GaugeShipping Weight Lbs.
P1212" 4.5"510
P12-612"6''513
P12-812"8.5''515
P1818"4.5''515
P18-618"6''519
P18-818"8.5''522
P2424"4.5''519
P24-624"6''523
P24-824"8.5''528

 Need a lower profile guard? Try our V-Nose Guards!

Videos

P12-6 used with Mecalux 5’’ bolted footplates

Seismic racking with various post protectors

Guarantee/Warranty

Personal and professional customer service is offered on all Handle It Post Protectors. Our Post Protection carries a three-year limited warranty on all materials and workmanship.
