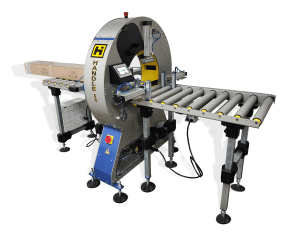

SA-50 Semi-Automatic Orbital Wrap Machine

Semi-automatic orbital wrapper used for bundling product by manually feeding material through the machine and packaging with stretch film. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use. The model OWM-SA-50 can be used for products like wood molding, flooring, profiles, aluminum bars, pipes, firewood, tubes, blinds, or any other small product needing to be bundled.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Simple speed and film tension adjustment

110v standard plug with a foot pedal control

Request a Quote

Category:

Overview

Performance & Specifications

  • 50 cm wide opening
  • 4″ wide machine bundling film with 1.5″ core
  • Double reel dispenser head, faster cycle times
  • Infeed & outfeed gravity rollers table with vertical rollers
  • Fast reel changing; no tools required
  • Adjustable film tension with consistent force
  • Safety features built into the cutting system and while changing reels
  • Foot switch control and main control panel with 3 wrapping modes
  • Rotation speed 5-150 RPM
  • 90 psi air required
  • 110v standard plug
  • Machine size 28″L x 41″ W x 57″ H (basic configuration)

Literature

Product Information Sheet

Product Sizing Chart

Orbital Wrapping Equipment Survey Sheet

Accessories

  • Gravity rollers conveyors.
  • Side vertical rollers “V” shape.
  • Short products bridge.
  • Top presser with manual fitting.
  • Wheels with brake.
  • Manual bubblewrap floor dispenser for reel up to 47″

Specifications

Product to wrap sizes:

  • Maximum / minimum length : no limit / (9.8″/250mm) or (6″150 mm) with short products bridge.
  • Width and height : Check with graphic.

Electrical equipment:

  • Power : 110v single phase.
  • Engine : 0,4 Kw
  • Manoeuvre : 24V c.c.
  • Power consumption : 0,26 Kw
  • Ring rotation speed : from 5 to 150 rpm.
  • Speed inverter : Omron.
  • PLC : Omron.
  • Pneumatic pressure : 90psi (for configuration with cutting system).
  • Compressed air consumption : .75gal/cycle (for configuration with cutting system). Stretchfilm or paper* reel specifications:
  • Width : 4″
  • Thickness : 17, 20, 23 or 30 microns.
  • External / Internal Ø : (7.8″/200mm) / (1.5″/38 mm.)

Review the chart below to choose the proper size wrapper for your products

Use this chart to determine which semi-auto orbital wrapper you need for your products.

Guarantee/Warranty

The Model 50 has a 2-year warranty. For any service-related questions, please call and our technicians will be happy to assist.
